overhead Outdoor singlejacket multi cores Singlemode ADSS Fiber Optic Cable
ADSS destricption
Non-Metallic ADSS 6/12/24/48/96 Core 100/200m span G652D Fiber Optic Cable ADSS
The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded
around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress.
The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completedwith a PE sheath.
Features
1. Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstandingmechanical and environmental performance.
2. Non-metallic construction is convinence for cable laying without cutoff the power systems .
3. High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for
different weather conditions and different installation spans.
4. Special AT(anti-tracking) outer sheath (optional) offers good electro-erosion resisting performance.
Structure and Technical Specifications
1. ADSS single jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 93 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 93 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 93 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 9.8 | 80 | 93 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 9.8 | 85 | 96 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 10.0 | 88 | 99 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 10.5 | 98 | 109 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 12.0 | 122 | 136 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 15.2 | 176 | 189 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
2. ADSS double jacket
| fiber count | structure | fiber per tube | losse tube diameter (MM) | FRP/pad diameter (mm) | Thickness of outer jacket(mm) | Ref. Outer
Diameter
(mm) | Ref. Weight
(kg/km) |
| PE Jacket | AT Jacket |
| 4 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 6 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 8 | 1+6 | 4 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 12 | 1+6 | 6 | 1.9 | 2.0/2.0 | 1.7±0.1 | 12.0 | 125 | 135 |
| 24 | 1+6 | 6 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.0 | 128 | 138 |
| 48 | 1+6 | 12 | 2.0 | 2.0/2.0 | 1.7±0.1 | 12.5 | 130 | 140 |
| 72 | 1+6 | 12 | 2.2 | 2.0/2.0 | 1.7±0.1 | 13.2 | 145 | 155 |
| 96 | 1+8 | 12 | 2.2 | 2.0/3.4 | 1.7±0.1 | 14.5 | 185 | 195 |
| 144 | 1+12 | 12 | 2.2 | 3.0/7.2 | 1.7±0.1 | 16.5 | 212 | 228 |
Tips: all the specifications in the abolve table is approximate data, for more detals specifications,
pls contact our salers.
| Fiber type | Attenuation (+20℃) | Bandwidth | Optical cable cut-off wavelength |
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm |
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | ---
|
Details picture shows

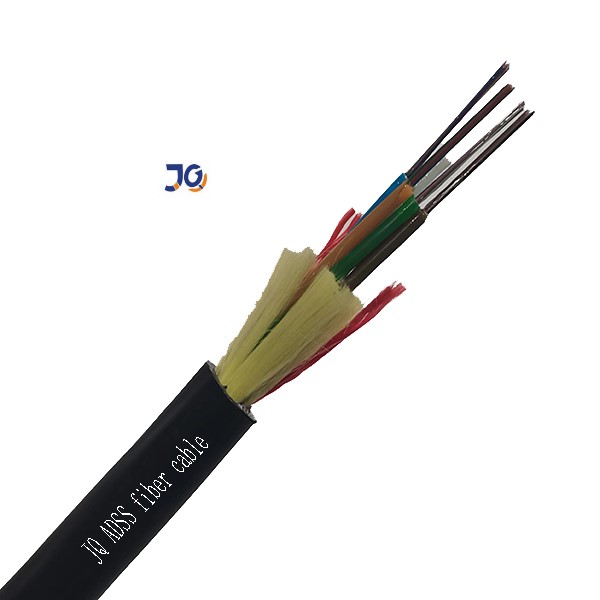

single jacket ADSS fiber cable
double jacket ADSS fiber optic cable
