fiber optic cable type GYTW 12core with armored steel

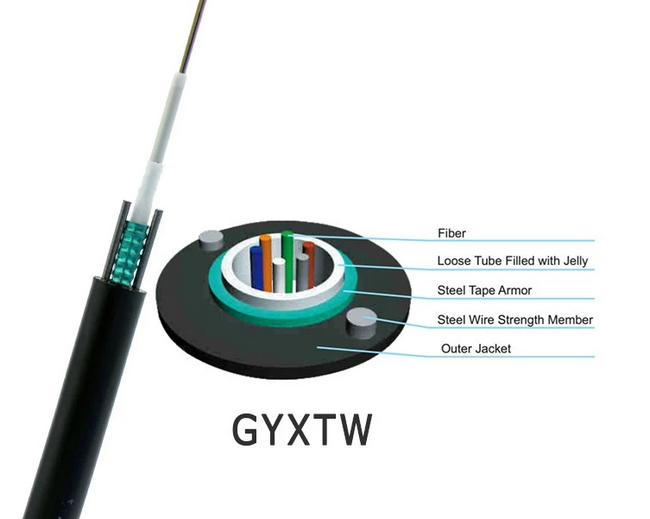

Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension
Product Characteristics
• Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Cable Parameters
| Items | Specifications |
| Fiber Count | 2~24 |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT |
| Color | Natural |
| Strength Member | Diameter | 1.0mm |
| Material | Steel |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE |
| Color | Black |
Technical Parameters
Fiber
Count | Cable
Diameter(mm) | Cable Weight
kg/km) | Tensile Strength
Long/Short
Term (N) | Crush Resistance
Long/Short
Term (N/100mm) | Bending Radius Static/Dynamic
mm) |
| 2~12 | 8 | 78 | 1000/300a0 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |
Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm |
≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) |
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm |
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
| Core / Clad concentricity error | ≤0.6 um |
| Cladding diameter | 125.0 ± 1 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm | ≤ 0.1 dB/km |
package
workshop part
